hertz HP1KD

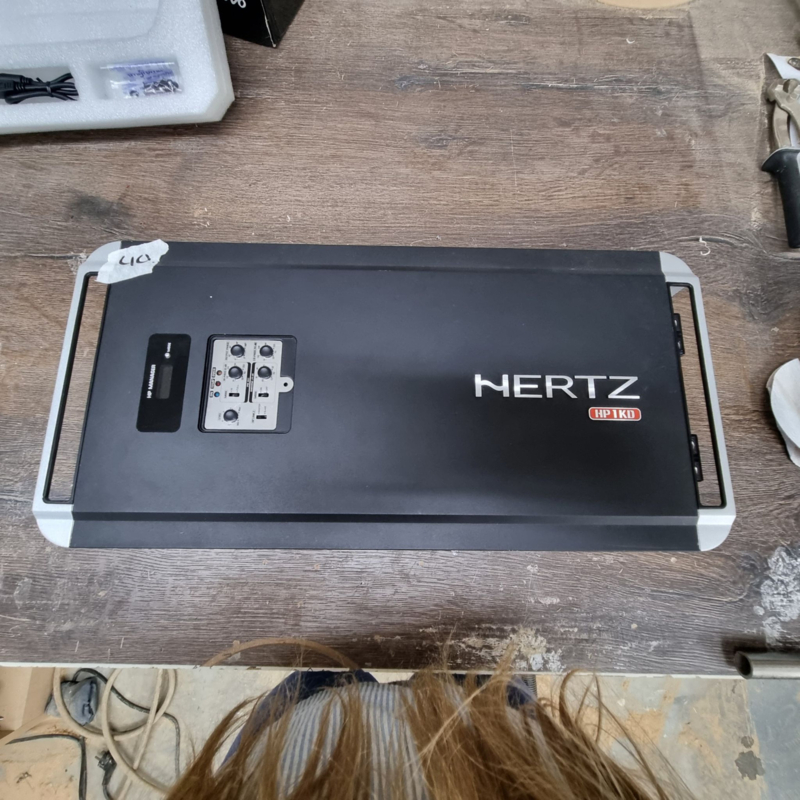

Hertz HP1-KD 3200W RMS Mono Amplifier
is een unieke versterker, en is zo goed als nieuw
wordt geleverd met de beschermfoom uit de doos(doos zit er niet bij)
lengte: 59cm
breedte: 28cm
hoogte: 5,5cm
- 1050W x 1 @4-ohm
- 2100W x 1 @2-ohm
- 3200W x 1 @1-ohm
- HP Link mode RMS Power:
- 3200W x 1 (4-ohm - HP LINK)
- 6600W x 1 (2-ohm - HP LINK)

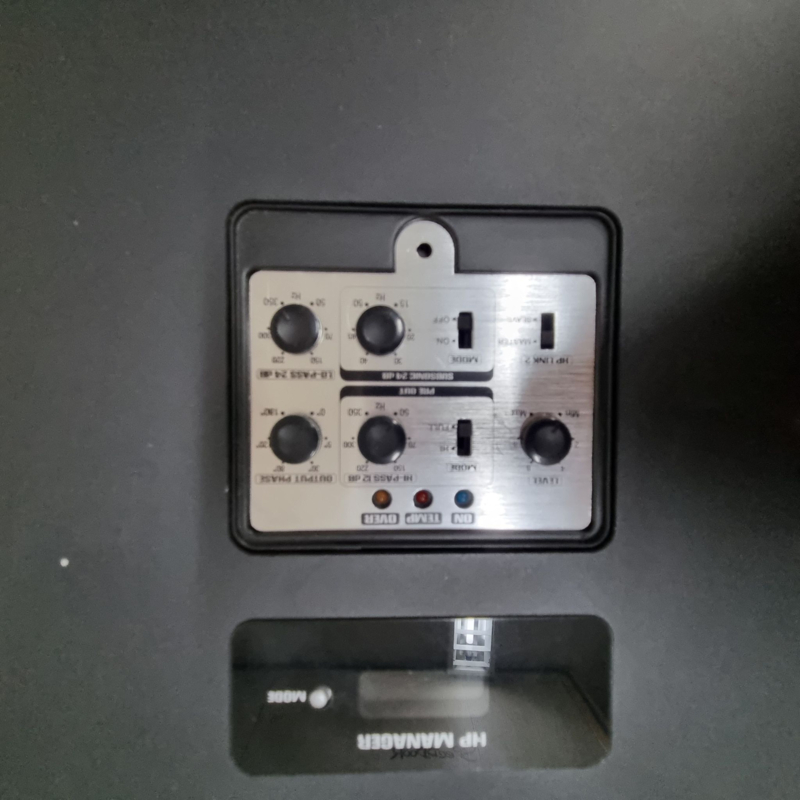

- Low Pass Filter: 50 - 350Hz @24dB/Oct (L+R)
- Subsonic: By-pass / 10 - 50Hz @24dB/Oct
- Output Phase Control (continous): 0/180 Degress
- HP LINK mode: Master/Slave
- Output Filter: Bypass / 59-350Hz @12dB/Oct
- T.H.D. (100Hz @4-ohm): 0.09%
- Bandwith (-3 dB): 4 - 350Hz
- S/N Ratio (A weighted @1V): 87dBA
- Damping Factor (100Hz @4-ohm): 100
- Pre-In sensitivity: 0.3-5Volts
- Pre-In impedence: 15 kohms
- Speaker-In sensitivity: 1.4-24Volts
- Speaker-in impendence@ 5kOhms
- Load impendence: 4-1Ohms
- Power supply voltage: 11 - 16.5Volts
- Idling current: 3.3A
- Idling current when off: 0.05mA
- Consumption @1, 14.4VDC: 160A
- Remote In: 7-16.5 VDC - 1mA
- Remote Out: 12 VDC - 50mA
- Automatic Turn On/Off with speaker in
- Fuse: 300A or 150A x 2 (AFS - external)

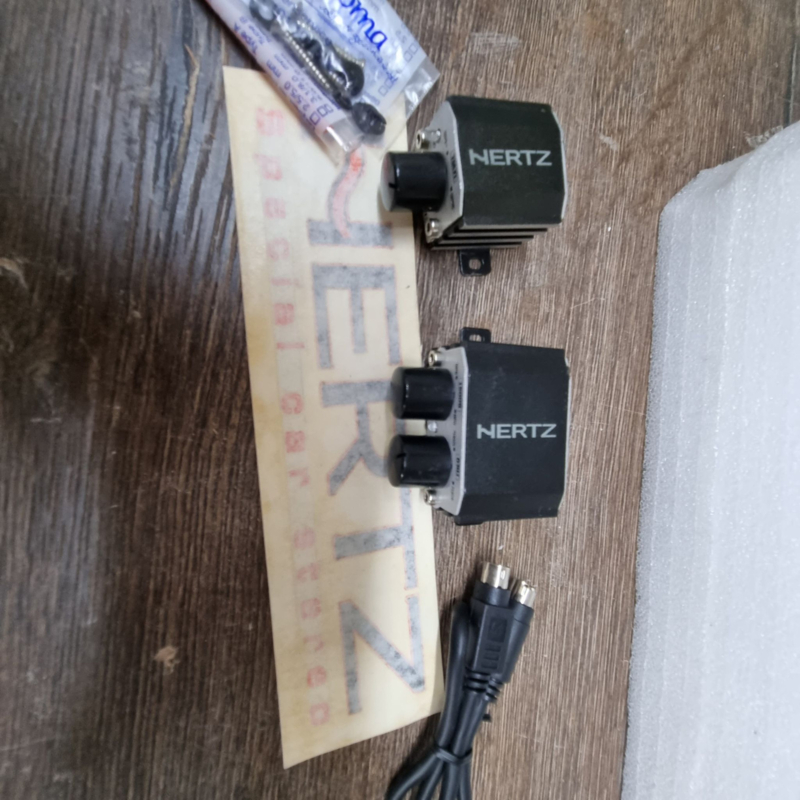

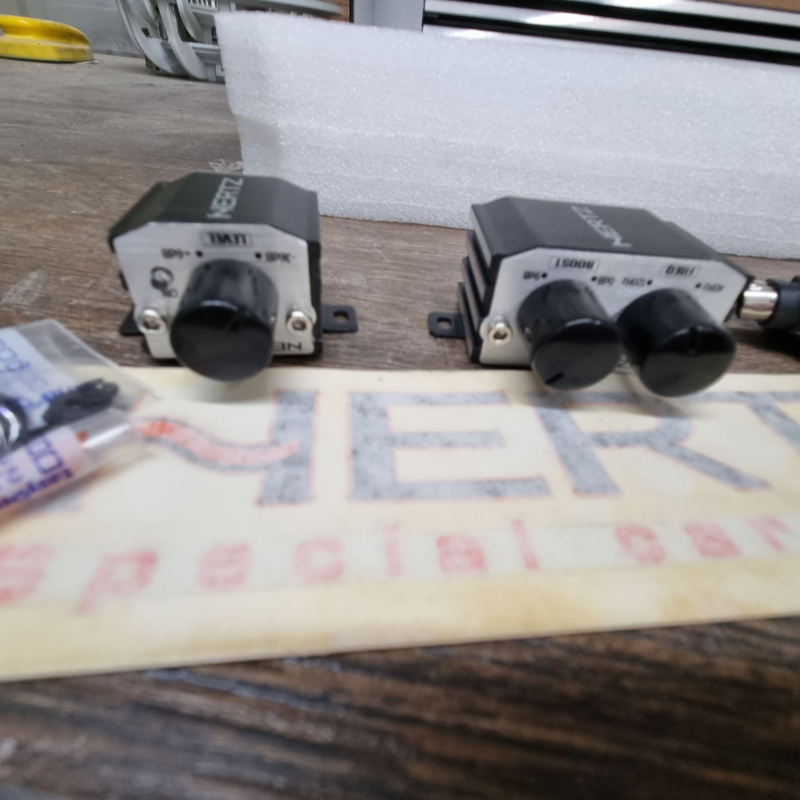

- HP RVC (Digital remote Volume Control): Level: -36, +6dB
- HP RBC (Remote Bass control): Frequency 40Hz - 120Hz, Boost: 0dB, +9dB
